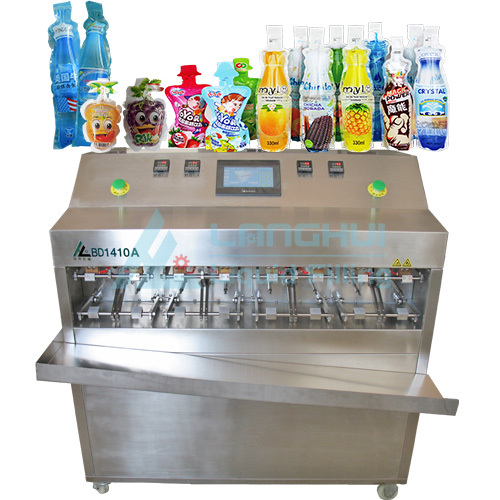

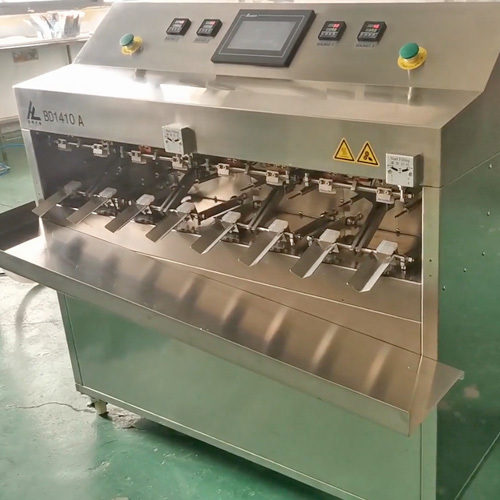

BD1410A Filling and Sealing Machine
Origin: Anhui, China
Model: BD1410A
HS Code: 842230
MOQ.: 1
Driven Type: Pneumatic & electric power-driven
Applications
The irregular shape bag is a popular liquid packaging shape. It is also called pre-shaped bag, stick bag, sachet, and stand-up pouch. It is a novel form of customized flexible packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low-cost packaging materials, etc.
BD1410A filling and sealing machine is widely used in low viscosity liquid products such as drinking water, pure water, fruit flavor drinks, energetic drinks, juice, ice pop, ice lolly, popsicle, etc.
Features

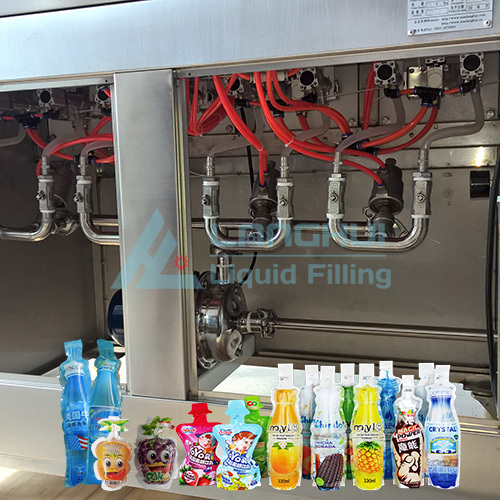

It adopts SUS 304 stainless steel material and food-grade silicone tube; Delta PLC+ Delta touch screen+ CHINT electrical equipment+ Omron Power supply + Omron proximity switch + AirTAC Cylinder + WSNS Pneumatic Components.-
SUS304 stainless steel and food-grade material.
-
Delta PLC system and English man-machine visualization operation interface (Delta touch screen).
-
Adjustable filling volume.
-
Unique sealing part design, seal suitable location, firm, safety.
-
Each features modular, easy maintenance.
-
Sanitary centrifugal pump
Technical data
Model | BD1410A |
Packing rate | 2000-3500 bags/hr |
Filling nozzles | 8 |
Workstation | 2 |
Bag material | Composite PP; PE; PA; AL; NY; etc. pre-shaped bag |
Filling volume | 20~500ml |
Filling accuracy | <150ml ±(2~5)ml; 150~500ml ≤±4% |
Power input | 220V 50Hz |
Power | 0.8-1.6 Kw |
Air Pressure | 0.6-0.8 Mpa |
Air Consumption | 0.25-0.50 m3/min |
Net weight | ≈130 kg |
Overall dimension | 1.2x0.7x1.1m3 |
Gross weight | ≈180 kg |
Packaging dimension | 1.3x0.9x1.3m3 |

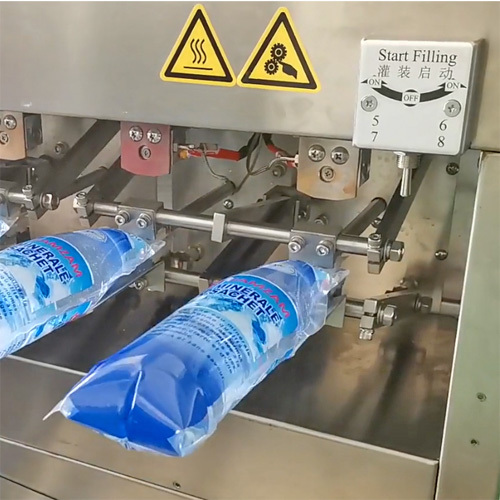

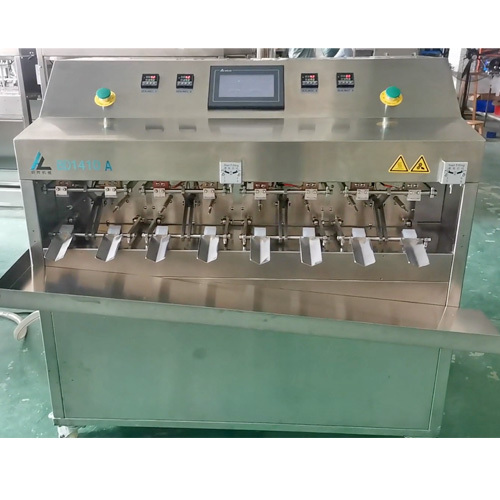

Pictures for reference
How to select which model suits your products
Please consider the following questions, which will help you choose a suitable model.
1. What is your product? It is better if there is a video showing the viscosity of the product.2. What is the volume range (The Min. ml/g and Max. ml/g) of your bags/pouches?
3. What is the output per hour?
4. What is the power system standard in your factory? For example, this series filling machine needs AC 1 phase 220V 50Hz (standard) of the power system to drive. It also can be customized AC 1-phase-110V /240V & 50Hz /60Hz (Choose one).
5. Do you have the bag/spout pouch supplier and sample? We also can introduce our partners who are good at designing and manufacturing bags to you if you don’t have or want more references.
Tips:
3 factors affect production speed
a) the bag volume, bigger bag slower speed.
b) the viscosity of the product, higher viscosity slower speed.
c) the operator inserting bag speed (the most important factor).
Take drinking water as an example (according to skilled worker experience data):
Pouch volume | BD1410 / A / B2 / C | BD1410A2 / B3 |
100ml | 2,800-3,200 BPH | 3,100-3,700 BPH |
200ml | 2,500-2,800 BPH | 2,800-3,300 BPH |
300ml | 2,000-2,400 BPH | 2,300-2,900 BPH |
500ml | 900-1,200 BPH | 1,200-1,700 BPH |
1000ml | 700-900 BPH | 1,000-1,200 BPH |
The difference between the popular filling nozzle and the anti-drip filling valve & nozzle is shown on YouTube https://youtu.be/HUMzbRfsfA4
- The BD1410 video shown on YouTube is https://youtu.be/a1y4eoTaNy4
- The BD1410A video shown on YouTube is https://youtu.be/YbH5ORjG3e0
- The BD1410A2 video shown on YouTube is https://youtu.be/wgYKC-7yjJo
- The BD1410B2 video shown on YouTube is https://youtu.be/4Wbm6L06BKA
- The BD1410B3 video shown on YouTube is https://youtu.be/1OUA1-KoLUw
- The BD1410C video shown on YouTube is https://youtu.be/MHr5ylvCtVU
- PVC Belt Conveyor video shown on YouTube is https://youtu.be/gh4--0DAx4A
- A small sachet of juice completes the production line. https://youtu.be/Lw1QNd6pJqg
We have our patent for the anti-drip valve and filling nozzle.
We own the patent for the anti-drip filling valve. The unique anti-drip filling valve can effectively prevent dripping and splashing on the sachet outside and machine parts during the filling process, reducing waste and avoiding safety hazards caused by leaks. BD1410 has no it. Other models are equipped with anti-drip valves.
No splashing, and fewer leaks.
Configuration contrast
BD1410 | BD1410A | BD1410A2 | BD1410B2/C | BD1410B3 | ||
01 | Delta touch screen | Yes | Yes | Yes | Yes | Yes |
02 | Delta PLC system | Yes | Yes | Yes | Yes | Yes |
03 | CHINT electrical equipment | Yes | Yes | Yes | Yes | Yes |
04 | Omron Power supply | Yes | Yes | Yes | Yes | Yes |
05 | AirTAC air cylinder | Yes | Yes | Yes | Yes | Yes |
06 | Food-grade silicone hose | Yes | Yes | Yes | Yes | Yes |
07 | SUS304 Centrifugal pump | Yes | Yes | Yes | No | No |
08 | SUS304 piston pump | No | No | No | Yes | Yes |
09 | Pop filling nozzles | Yes | No | No | No | No |
10 | Anti-drip valve & filling nozzles | No | Yes | Yes | Yes | Yes |
11 | Low viscosity liquid | Yes | Yes | Yes | Yes | Yes |
12 | High viscosity liquid | No | No | No | Yes | Yes |
13 | Upgraded control system | No | No | Yes | No | Yes |
Critical size of the bag
We also can design filling nozzles for you according to your bag.
About the warranty and shelf life

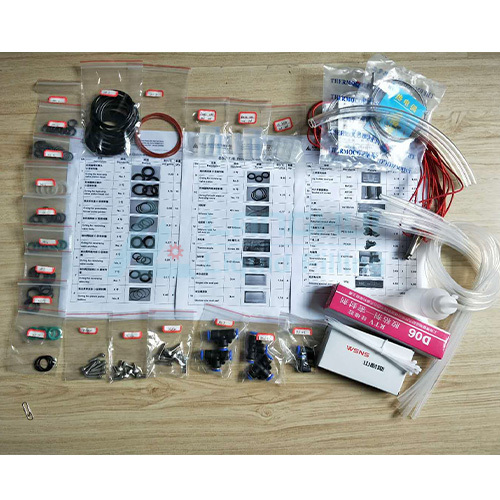

A different model is equipped with corresponding free spare parts (Generally speaking, enough for one year) and tools.It is a warranty period of 12 months after arriving at the buyer's factory, providing non-human damage.
The seller will send spare parts to the buyer for free if they were not caused by the unreasonable operation in the warranty period. Otherwise, the buyer pays for all costs.
Train buyer’s technician in our factory is free. The round trip charges are paid by the buyer.
The seller sends engineers to the buyer’s factory to install the machines and train the buyer’s technicians if the buyer requires them.
The buyer needs to pay for all of the round-trip charges for the seller's engineers, including the visa fee, air tickets, the local accommodation, the food, the local traffic charges, and so on.
The buyer also needs to pay for each of the seller's engineers USD 150 per day as salary.
Provide detailed and professional manuals and videos to show how to operate, install and maintain machines and construction drawings; before delivery, connect and debug all equipment according to the workshop layout, and paste the mark. Simultaneously shoot the video and save it to the U disk; provide services online via email, WhatsApp, and WeChat.
Operation Video of BD1410A
We supply a printed manual, a USB disk which was saved operation videos (show how to operate, repair, and maintain, etc.), and online service. You also can download it online.
01. How to Install the receiver groove
02. How to quick start BD1410A
03. Touch screen view and set parameters
04. How to lubricate anti-drip valve
05. How to replace O-rings
06. How to replace seal pad
07. How to replace heating pipe
08. How to replace thermocouple
09. How to replace temperature controller
10. How to adjust bag clamper pressure
11. How to test secondary pressure
12. How to replace filling nozzle
