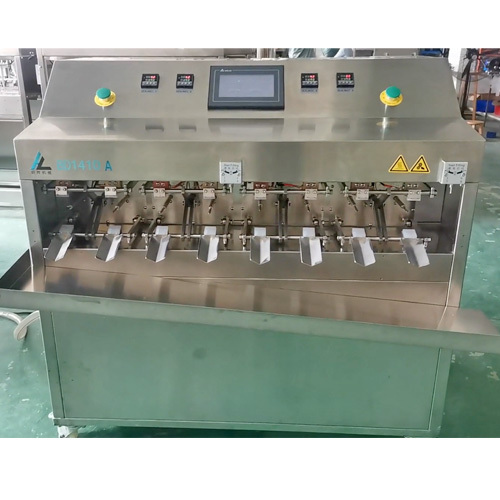

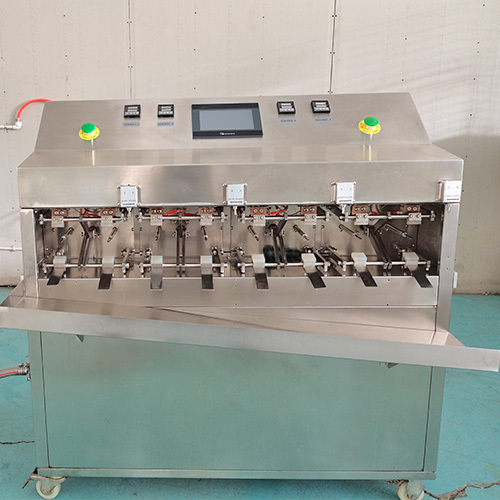

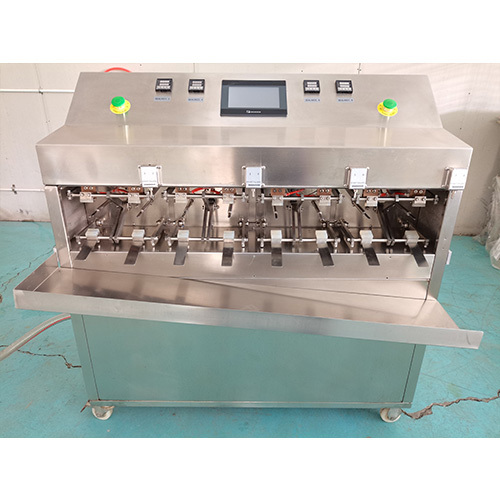

BD1410A2 Filling and Sealing Machine
Origin: Anhui, China
Model: BD1410A2
HS Code: 842230
MOQ.: 1
Driven Type: Pneumatic & electric power
Applications
1. The irregular shape bag is a popular liquid packaging shape. It is also called a pre-shaped bag, stick bag, sachet, stand-up pouch, spout pouch, bottle shape pouch, fruit shape pouch, etc. It is a novel form of customized flexible packaging, with diverse modeling, reliable measurement, seal firm, easy-to-use, and low-cost packaging materials, etc.
2. BD1410A2 filling and sealing machine is widely used in low-viscosity liquid products such as drinking water, pure water, fruit flavor drinks, energetic drinks, juice, ice pop, ice lolly, popsicles, etc.
Features
It adopts SUS 304 stainless steel material and food-grade silicone tube; Delta PLC+ Delta touch screen+ CHINT electrical equipment+ Omron Power supply + Omron proximity switch + AirTAC Cylinder + WSNS Pneumatic Components.1. SUS304 stainless steel and food-grade material.

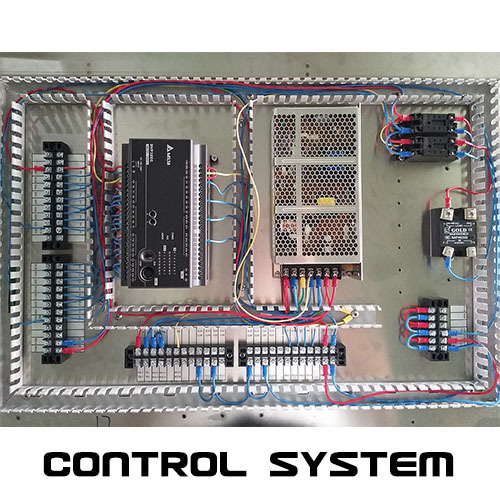

2. Delta DVP60EC PLC system control, Delta DOP-107BV touch screen visualization operation interface.
3. The filling and sealing group is upgraded from 2 independent stations to 4 independent stations.
4. Unique anti-drip valve and filling nozzles design, no leaking filling, and save cost.
5. Unique sealing part design, seal suitable location, firm, safety.
6. Reorganized functional modules, smaller, more independent, and easier to maintain.

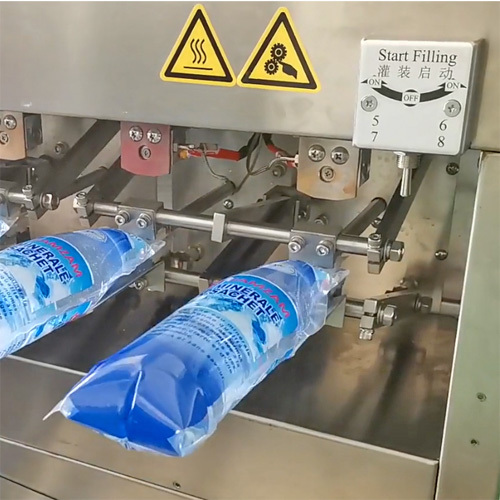

7. Based on the original 2 mushroom push-button start switches, 4 sets of toggles are added, which is more convenient to operate and faster in production. Compared with before the upgrade, it can increase by 300-500 per hour (1 operator), and 800-1200 per hour (2 operators)...
Technical data
|
Model
|
BD1410A2
|
|
Packing rate
|
2000-3500 bags/hr
|
|
Filling nozzles
|
8
|
|
Workstation
|
4
|
|
Bag material
|
Composite PP; PE; PA; AL; NY; etc. pre-shaped bag
|
|
Filling volume
|
20~500ml
|
|
Filling accuracy
|
<150ml ±(2~5)ml; 150~500ml ≤±4%
|
|
Power input
|
220V 50Hz
|
|
Power
|
0.8-1.6 Kw
|
|
Air Pressure
|
0.6-0.8 Mpa
|
|
Air Consumption
|
0.25-0.50 m3/min
|
|
Net weight
|
≈150 kg
|
|
Overall dimension
|
1.25x0.75x1.35m3
|
|
Gross weight
|
≈200 kg
|
|
Packaging dimension
|
1.35x0.9x1.45m3
|

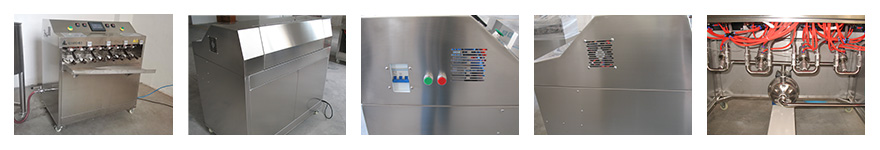

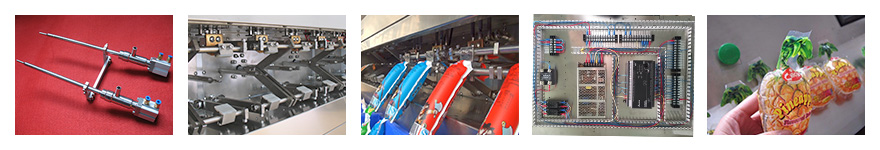

Pictures for reference
How to select which model suits your products
Please consider the following questions, which will help you choose a suitable model.
1. What is your product? It is better if there is a video showing the viscosity of the product.
2. What is the volume range (The Min. ml/g and Max. ml/g) of your bags/pouches?
3. What is the output per hour?
4. What is the power system standard in your factory? For example, this series filling machine needs AC 1 phase 220V 50Hz (standard) of the power system to drive. It also can be customized AC 1-phase-110V /240V & 50Hz /60Hz (Choose one).
5. Do you have the bag/spout pouch supplier and sample? We also can introduce our partners who are good at designing and manufacturing bags to you if you don’t have or want more references.
Tips:
3 factors affect production speed
a) the bag volume, bigger bag slower speed.
b) the viscosity of the product, higher viscosity slower speed.
c) the operator inserting bag speed (the most important factor).
Take drinking water as an example (according to skilled worker experience data):
|
Pouch volume
|
BD1410 / A / B2 / C
|
BD1410A2 / B3
|
|
100ml
|
2,800-3,200 BPH
|
3,100-3,700 BPH
|
|
200ml
|
2,500-2,800 BPH
|
2,800-3,300 BPH
|
|
300ml
|
2,000-2,400 BPH
|
2,300-2,900 BPH
|
|
500ml
|
900-1,200 BPH
|
1,200-1,700 BPH
|
|
1000ml
|
700-900 BPH
|
1,000-1,200 BPH
|
Videos of all models are shown on the YouTube channel
The difference between the popular filling nozzle and the anti-drip filling valve & nozzle is shown on YouTube https://youtu.be/HUMzbRfsfA4
- The BD1410 video shown on YouTube is https://youtu.be/a1y4eoTaNy4
- The BD1410A video shown on YouTube is https://youtu.be/YbH5ORjG3e0
- The BD1410A2 video shown on YouTube is https://youtu.be/wgYKC-7yjJo
- The BD1410B2 video shown on YouTube is https://youtu.be/4Wbm6L06BKA
- The BD1410B3 video shown on YouTube is https://youtu.be/1OUA1-KoLUw
- The BD1410C video shown on YouTube is https://youtu.be/MHr5ylvCtVU
- PVC Belt Conveyor video shown on YouTube is https://youtu.be/gh4--0DAx4A
- A small sachet of juice completes the production line. https://youtu.be/Lw1QNd6pJqg
We have our patent for the anti-drip valve and filling nozzle.
Before determining the purchase, you can compare it with other similar machines. The anti-drip valve can suck the excess liquid back to the pipeline of the filling machine after filling bags, to avoid spraying to the outside of the bag and the machine. Then avoid polluting your machine. It also saves raw material costs and reduces cleaning work. YouTube link: https://youtu.be/Q1rvDBXu6-g
Configuration contrast
| BD1410 | BD1410A | BD1410A2 | BD1410B2/C | BD1410B3 | ||
| 01 | Delta touch screen | Yes | Yes | Yes | Yes | Yes |
| 02 | Delta PLC system | Yes | Yes | Yes | Yes | Yes |
| 03 | CHINT electrical equipment | Yes | Yes | Yes | Yes | Yes |
| 04 | Omron Power supply | Yes | Yes | Yes | Yes | Yes |
| 05 | AirTAC air cylinder | Yes | Yes | Yes | Yes | Yes |
| 06 | Food-grade silicone hose | Yes | Yes | Yes | Yes | Yes |
| 07 | SUS304 Centrifugal pump | Yes | Yes | Yes | No | No |
| 08 | SUS304 piston pump | No | No | No | Yes | Yes |
| 09 | Pop filling nozzles | Yes | No | No | No | No |
| 10 | Anti-drip valve & filling nozzles | No | Yes | Yes | Yes | Yes |
| 11 | Low viscosity liquid | Yes | Yes | Yes | Yes | Yes |
| 12 | High viscosity liquid | No | No | No | Yes | Yes |
| 13 | Upgraded control system | No | No | Yes | No | Yes |
Critical size of the bag
About the warranty and shelf life
12-month warranty, lifetime service.
We provide 1 printed manual and 1 USB disk, which contain detailed instruction videos on how to install, operate, maintain, and repair.
We provide 24-hour online after-sales service via WhatsApp, and WeChat, Messenger, email.
Through these methods, Since the company was founded in October 2013, there has been no customer need to provide on-site services. Greatly reduces maintenance costs for customers.

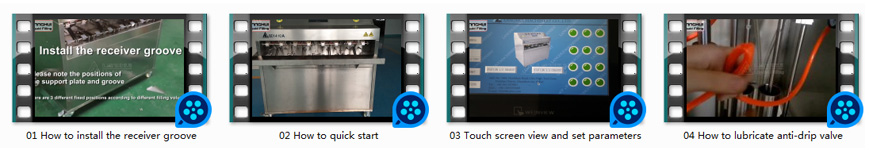

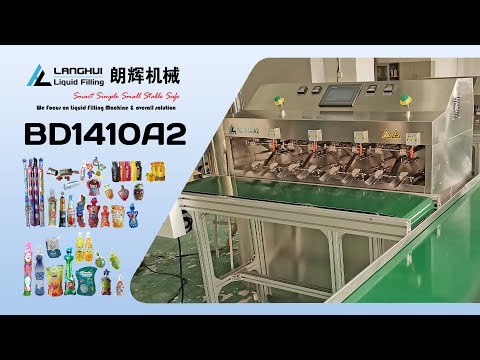

Operation Video of BD1410A2
We supply a printed manual, a USB disk which was saved operation videos (show how to operate, repair, and maintain, etc.), and online service. You also can download it online.

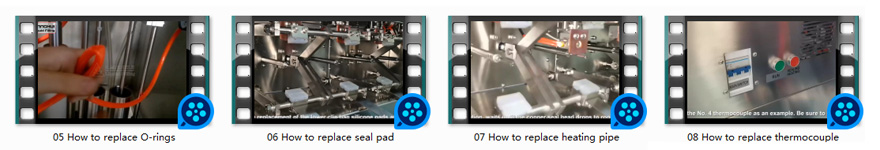

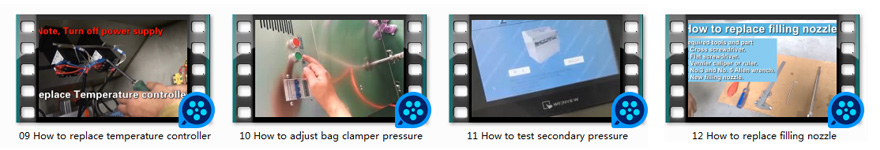

01. How to Install the receiver groove
02. How to quick start BD1410A2
03. Touch screen view and set parameters
04. How to lubricate anti-drip valve
05. How to replace O-rings
06. How to replace seal pad
07. How to replace heating pipe
08. How to replace thermocouple
09. How to replace temperature controller
10. How to adjust bag clamper pressure
11. How to test secondary pressure
12. How to replace filling nozzle
