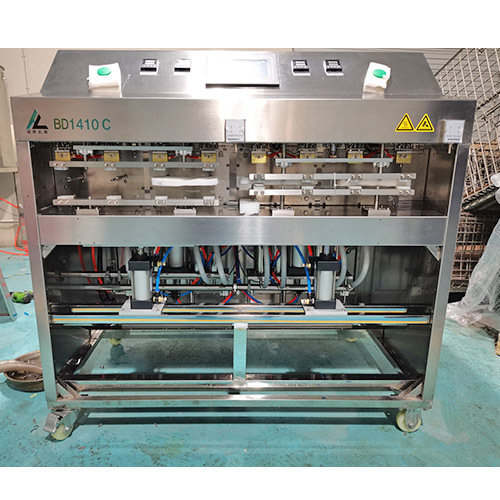

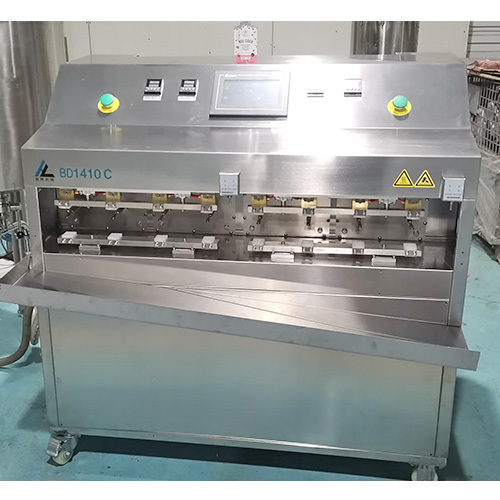

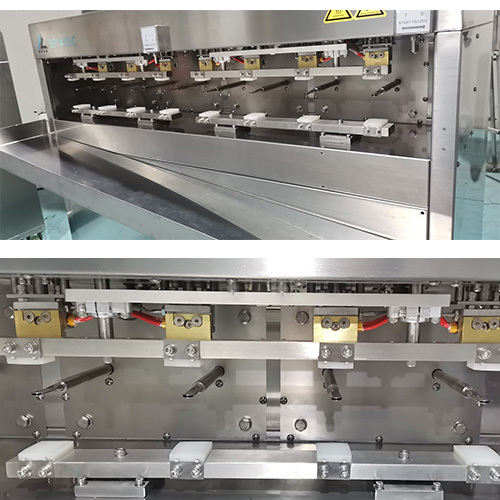

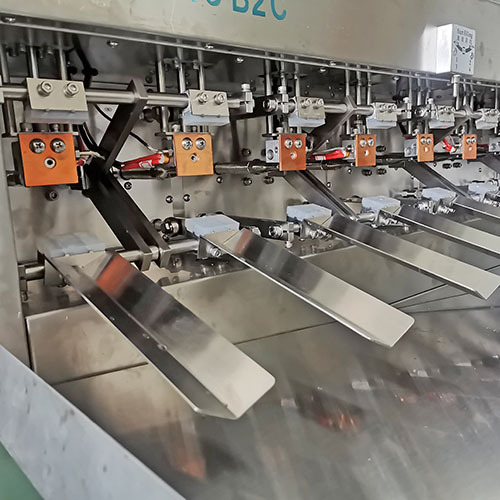

BD1410C Filling and Sealing Machine
Used in low & large viscosity liquid products such as health drinks, enzyme drinks, fruit vinegar, jelly, fruit jam, tomato sauce, honey, sports gel, cooking oil, shampoo, cosmetics, etc.
Origin: Anhui, China
Model: BD1410C
HS Code: 842230
MOQ.: 1
D
Origin: Anhui, China
Model: BD1410C
HS Code: 842230
MOQ.: 1
D
Description
Video
Selection reference
Warranty & After-sales service
Applications

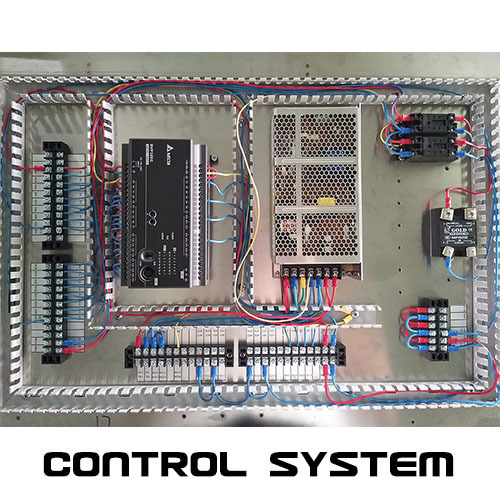

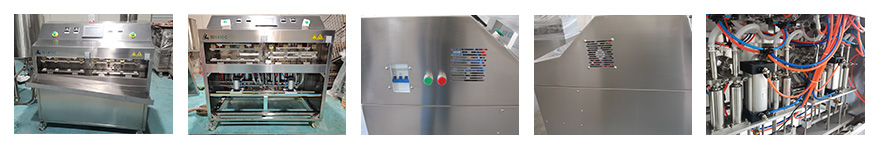

It adopts SUS 304 stainless steel material and food-grade silicone tube; Delta PLC+ Delta touch screen+ CHINT electrical equipment+ Omron Power supply + Omron proximity switch + AirTAC Cylinder + WSNS Pneumatic Components.
Technical data
- The irregular shape bag is a popular liquid packaging shape. It is also called pre-shaped bag, stick bag, sachet, stand-up pouch, spout pouch, bottle shape pouch, fruit shape pouch, etc. It is a novel form of customized flexible packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low-cost packaging materials, etc.
- The aluminum-plastic bag is a popular international packaging shape. It has the characteristics of anti-static, anti-ultraviolet, moisture-proof, oxygen-proof, shading, fresh and easy to seal, etc.
- BD1410C filling and sealing machine is widely used in low & large viscosity liquid products such as health drinks, enzyme drinks, fruit vinegar, jelly, fruit jam, tomato sauce, honey, sports gel, cooking oil, shampoo, cosmetics, etc.
It adopts SUS 304 stainless steel material and food-grade silicone tube; Delta PLC+ Delta touch screen+ CHINT electrical equipment+ Omron Power supply + Omron proximity switch + AirTAC Cylinder + WSNS Pneumatic Components.
- SUS304 stainless steel and food-grade material.
- Delta PLC system and English man-machine visualization operation interface (Delta touch screen).
- Unique anti-drip valve and filling nozzles design, no leaking filling, and save cost.

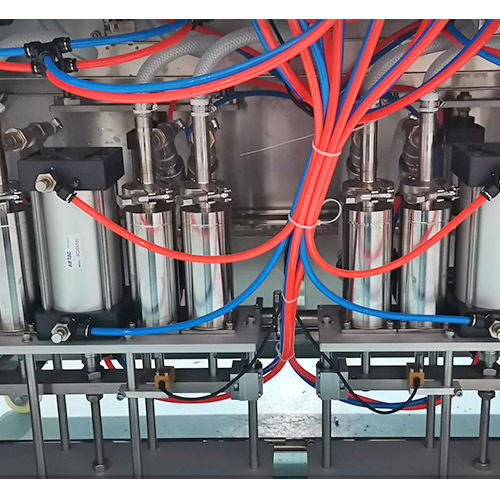

- Unique sanitary pneumatic piston pump design. It improves the filling volume control accuracy by less than ±1%.
- Adjustable filling volume.
- Unique sealing part design, seal suitable location, firm, safety.
- Each features modular, easy maintenance.
- On the basis of the original 2 mushroom push-button start switches, 2 sets of toggles are added, which is more convenient to operate and faster in production.
| Model | BD1410C | ||
| Packing rate | 500-3500 b/h | ||
| Filling nozzles | 8 | ||
| Workstation | 2 | ||
| Filling accuracy | ≤±1% | ||
| Liquid temp. | ≤95℃ | ||
| Filling volume | See below | ||
| Piston pump | 110ml | 210ml | 310ml |
| Once Filling | 10~100ml | 20~200ml | 30~300ml |
| Max. Con. filling | 3 times | 3 times | 3 times |
| Max. Filling | 300ml | 600ml | 900ml |
| Sealed height | 2mm | ||
| Power input | 220V 50Hz | ||
| Power | 0.8-1.6 Kw | ||
| Air Pressure | 0.6-0.8 Mpa | ||
| Air Consumption | 0.50-0.75 m3/min | ||
| Net weight | ≈190 kg | ||
| Overall | 1.2*0.7*1.1m3 | ||
| Gross weight | ≈240 kg | ||
| Packaging | 1.3x0.9x1.3m3 | ||
| Bag material | Composite PP; PE; PA; AL; NY; etc. pre-shaped bag | ||
How to select which model suits your products
Please consider the following questions, which will help you choose a suitable model.1. What is your product? It is better if there is a video showing the viscosity of the product.
2. What is the volume range (The Min. ml/g and Max. ml/g) of your bags/pouches?
3. What is the output per hour?
4. What is the power system standard in your factory? For example, this series filling machine needs AC 1 phase 220V 50Hz (standard) of the power system to drive. It also can be customized AC 1-phase-110V /240V & 50Hz /60Hz (Choose one).
5. Do you have the bag/spout pouch supplier and sample? We also can introduce our partners who are good at designing and manufacturing bags to you if you don’t have or want more references.
Tips:
There are 3 factors that affect production speed:
a) your bag volume, bigger bag slower speed;
b) the viscosity of your product, higher viscosity slower speed;
c) the most important factor, the operator inserting bags speed and proficiency.
For example (the empirical data of output by a skilled operator):
BD1410/BD1410A/BD1410B2/BD1410C: 100ml→2,800-3,200 bph; 200ml→2,500-2,800 bph; 300ml→2,000-2,400 bph; 500ml→900-1,200 bph;
BD1410A2/BD1410B3: 100ml→3,100-3,700 bph; 200ml→2,800-3,300 bph; 300ml→2,300-2,900 bph; 500ml→1,200-1,700 bph.
Videos of all models are shown on the YouTube channel
The difference between the popular filling nozzle and the anti-drip filling valve & nozzle is shown on YouTube https://youtu.be/HUMzbRfsfA4The BD1410 video shown on YouTube is https://youtu.be/vktlqUsavOY
The BD1410A video shown on YouTube is https://youtu.be/YbH5ORjG3e0
The BD1410A2 video shown on YouTube is https://youtu.be/UxMZ1sl6PNo
The BD1410B video shown on YouTube is https://youtu.be/ttbnaDhMFTc
The BD1410B2 video shown on YouTube is https://youtu.be/4Wbm6L06BKA
The BD1410B3 video shown on YouTube is https://youtu.be/8bQBHCojyLM
The BD1410C video shown on YouTube is https://youtu.be/MHr5ylvCtVU
BD with PVC Belt Conveyor video shown on YouTube is https://youtu.be/gh4--0DAx4A
We have our own patent for the anti-drip valve and filling nozzle.
Before determining the purchase, you can compare it with other similar machines. The anti-drip valve can suck the excess liquid back to the pipeline of the filling machine after filling bags, so as to avoid spraying to the outside of the bag and the machine. Then avoid polluting your machine. It also saves raw material costs and reduces cleaning work. YouTube link: https://youtu.be/Q1rvDBXu6-g
Configuration contrast
| BD1410 | BD1410A | BD1410A2 | BD1410B2/C | BD1410B3 | ||
| 1 | Delta touch screen | Yes | Yes | Yes | Yes | Yes |
| 2 | Delta PLC system | Yes | Yes | Yes | Yes | Yes |
| 3 | CHINT electrical equipment | Yes | Yes | Yes | Yes | Yes |
| 4 | Omron Power supply | Yes | Yes | Yes | Yes | Yes |
| 5 | AirTAC air cylinder | Yes | Yes | Yes | Yes | Yes |
| 6 | Food-grade silicone hose | Yes | Yes | Yes | Yes | Yes |
| 7 | SUS304 Centrifugal pump | Yes | Yes | Yes | No | No |
| 8 | SUS304 piston pump | No | No | No | Yes | Yes |
| 9 | Pop filling nozzles | Yes | No | No | No | No |
| 10 | Anti-drip valve & filling nozzles | No | Yes | Yes | Yes | Yes |
| 10 | Low viscosity liquid | Yes | Yes | Yes | Yes | Yes |
| 11 | High viscosity liquid | No | No | No | Yes | Yes |
| 12 | Upgraded control system | No | No | Yes | No | Yes |

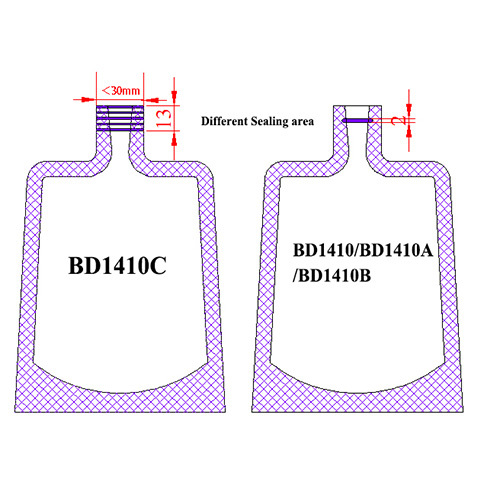

Critical size of the bag
We also can design filling nozzles for you according to your bag.
About the warranty and shelf life

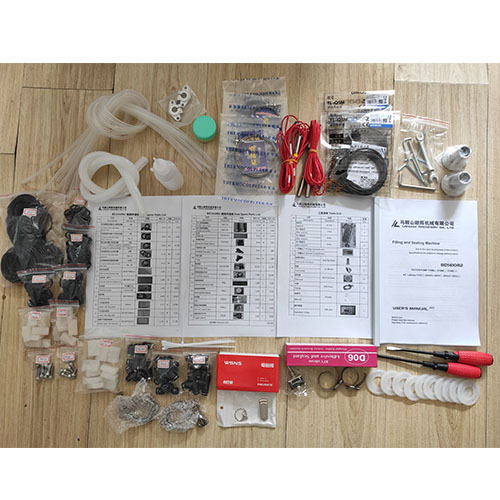

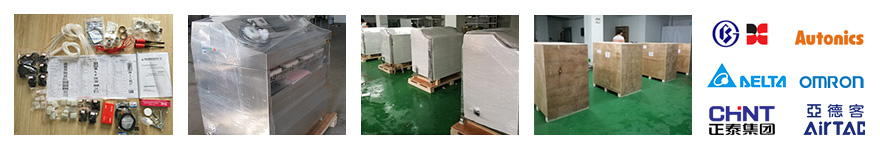

A different model is equipped with corresponding free spare parts (Generally speaking, enough for one year) and tools.It is a warranty period of 12 months after arriving at the buyer's factory, providing non-human damage.
The seller will send spare parts to the buyer for free if they were not caused by unreasonable operation in the warranty period. Otherwise, the buyer pays for all costs.
Train buyer’s technician in our factory is free. The round-trip charges are paid by the buyer.
The seller sends engineers to the buyer’s factory to install the machines and train the buyer’s technicians if the buyer requires them.
The buyer needs to pay for all of the round-trip charges for the seller's engineers, including the visa fee, air tickets, local accommodation, food, local traffic charges, and so on.
The buyer also needs to pay for each of the seller's engineers USD 150 per day as salary.
Provide detailed and professional manuals and videos to show how to operate, install, and maintain machines and construction drawings; before delivery, connect and debug all equipment according to the workshop layout, and paste the mark. Simultaneously shoot the video and save it to the U disk; provide services online via email, WhatsApp, and WeChat.

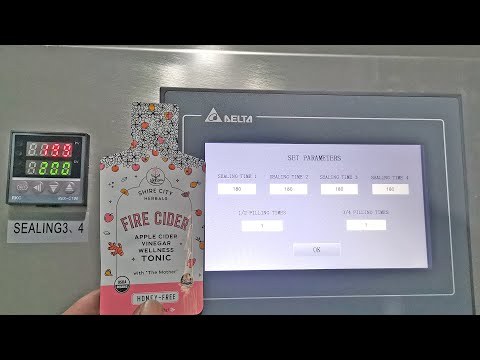

Operation Video of BD1410C
We supply a printed manual, a USB disk that saves operation videos (shows how to operate, repair, maintain, etc.), and online service. You also can download it online.

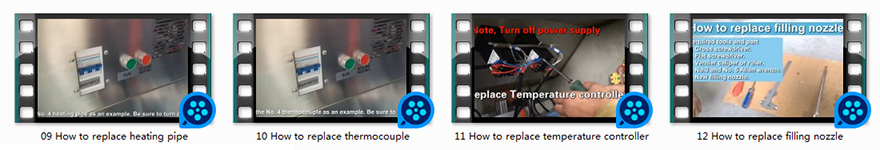

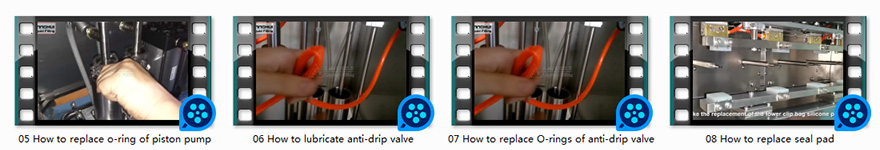

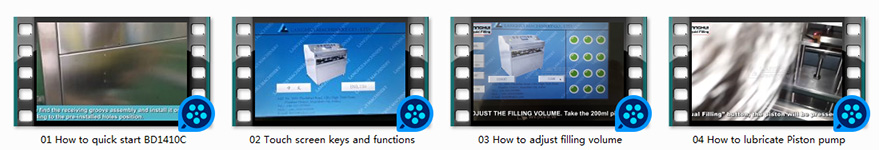

01. How to Install the receiver groove
02. How to quick start BD1410C
03. Touch screen keys and functions
05. How to lubricate piston pump
06. How to replace O-rings of piston pump
07. How to lubricate anti-drip valve
08. How to replace O-rings of anti-drip valve
09. How to replace seal pad
10. How to replace heating pipe
11. How to replace thermocouple
12. How to replace temperature controller
13. How to check mushroom button
14. How to adjust bag clamper pressure
15. How to test secondary pressure
16. How to replace filling nozzle
