Double barrel Filter
  • Double barrel Filter
  • Double barrel Filter
  • Double barrel Filter

Double barrel Filter

It widely used to filter liquid products such as fruit flavor drinks, energetic drinks, fruit juice; jelly, grass jelly, ice pop, ice lolly, popsicle; milk, mixing flavor yogurt; egg tofu, etc.
Origin: Anhui, China
HS code: 8421299090
INQUIRY
Description Technical Data
It widely used to filter liquid products such as fruit flavor drinks, energetic drinks, fruit juice; jelly, grass jelly, ice pop, ice lolly, popsicle; milk, mixing flavor yogurt; egg tofu, etc.

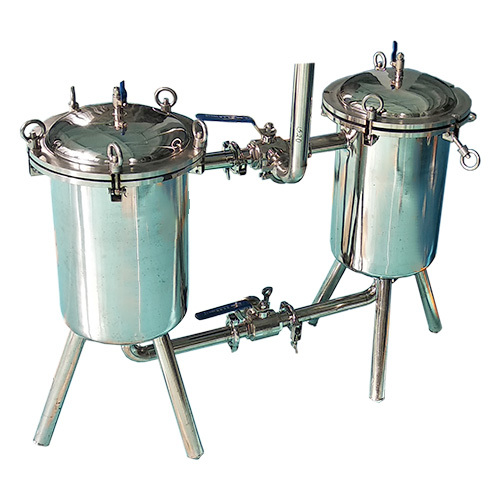

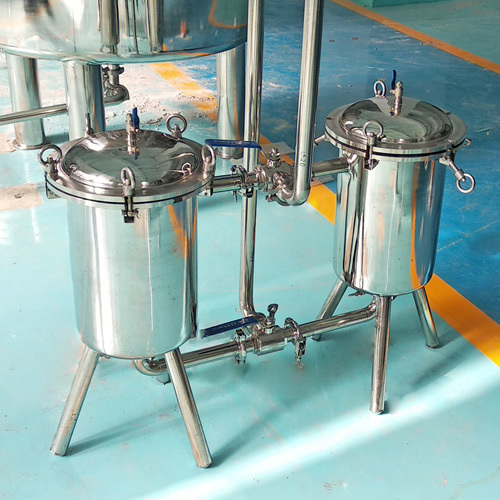

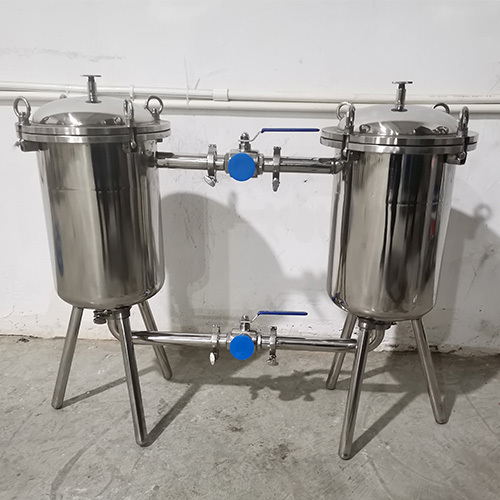

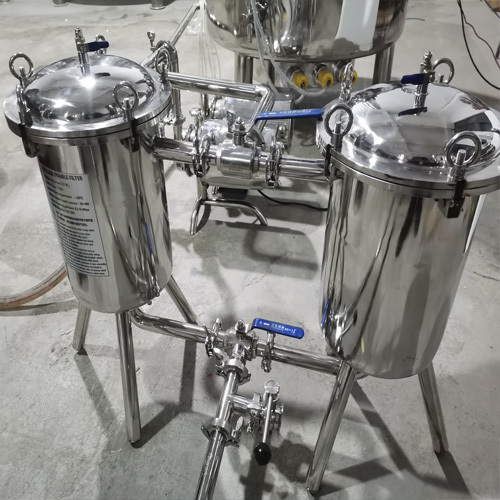

It is parallel connected by two sets of stainless steel filters. It owns advantages of reasonable structure, good sealing, strong circulation ability and easy operation, is multifunction filter equipment which is wide application range and strong adaptability. Especially the filter bag is small leakage rate, can guarantee the filtration precision, and can quickly change the filter bag.

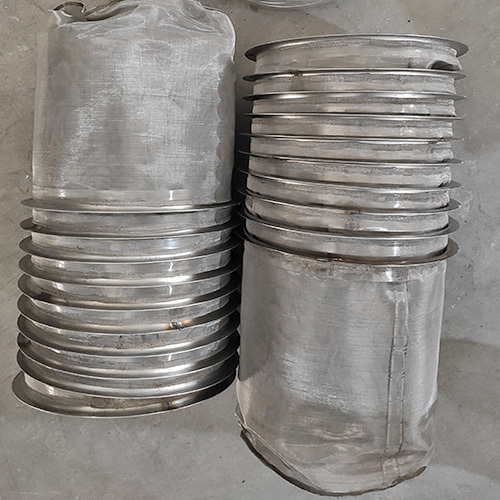

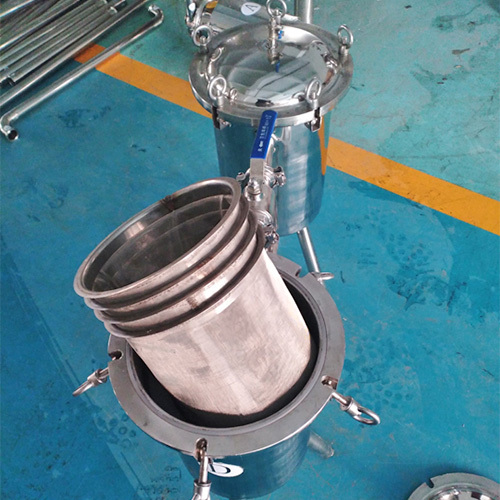

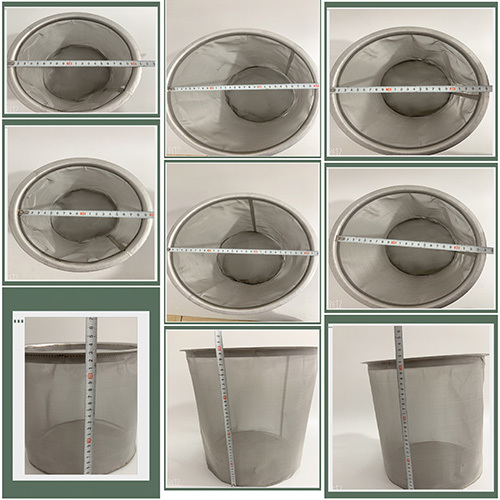

The filter all uses stainless steel to make, it consists of two stainless steel cylinder, it’s a single layer of stainless steel welding structure, internal and external surface polishing treatment, filter cylinder is equipped with stainless steel mesh and mesh support basket; Capped with a bleed valve, discharge air in the filter for filtering effect. Top cover connected to the filter cartridge adopts quick open structure, more convenient cleaning (change) mesh, three adjustable leg can make smooth filter is placed on the ground.

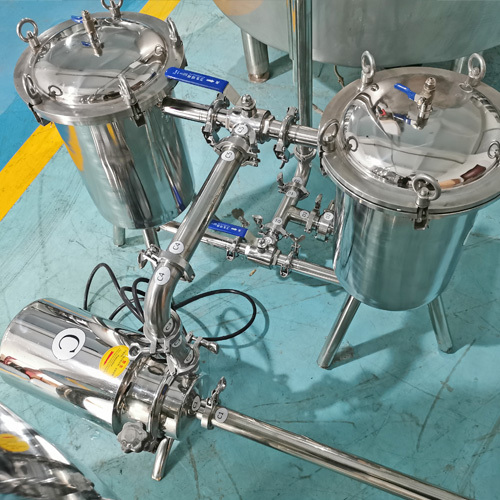

Pipe connection with articulated or clamp connection mode, front-rear using three-way ball valve opening and closing valve, pressure and temperature resistant, convenient operation and no material liquid leakage more health.


Flow 3 T/H 5 T/H 10 T/H
Filter mesh 80-200 80-200 80-200
Filtrate temperature 100 100 100
Filter area 0.15m2 0.25 m2 0.35 m2
DimensionLWH mm 1050x420x1087 1300x500x1100 1520x550x1200
Weight 45kg 65kg 75kg
Notes:
1. The technical parameters of filter in the diagram are standard configuration, any other requires, please put forward.
2. Process parameters that need provided: the material properties, productivity, special requirements, etc.
