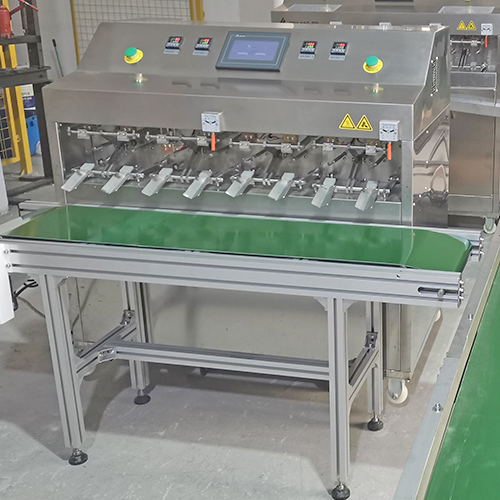

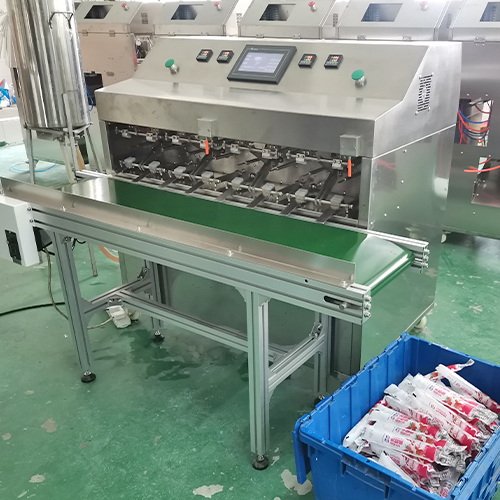

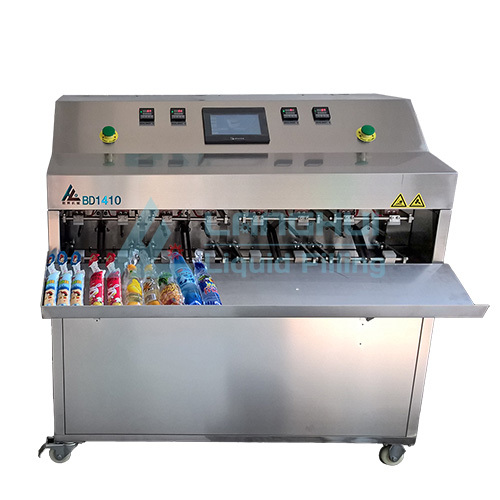

BD1410 Filling and Sealing Machine
Origin: Anhui, China
Model: BD1410
HS Code: 842230
MOQ.: 1
Driven Type: Pneumatic & electric power-driven
Applications
It is widely used for filling and sealing drinking water, pure water, mineral water, and fruity drinks.

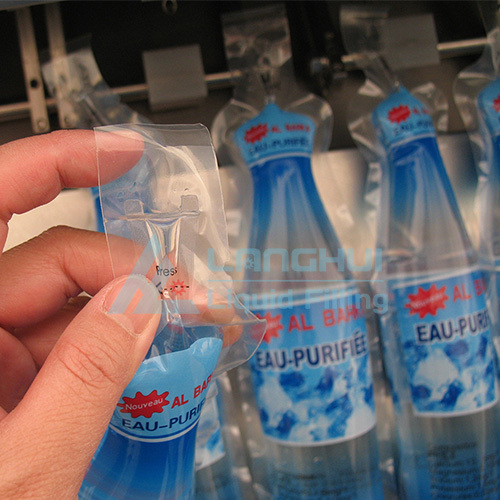

The various shapes of pre-made sachets are a popular liquid packaging shape method. It is also called a pre-shaped bag, bottle-shaped sachet, spout pouch, and stand-up pouch. It can be made of PE, aluminum-plastic, paper-plastic, and composite package materials. It is a novel form of customized flexible packaging, with diverse modeling, reliable measurement, seal firm, easy to use, and low cost. It is an ideal choice for small and medium-sized enterprises.
Features
- It adopts SUS304 sheets and tubes mainly.

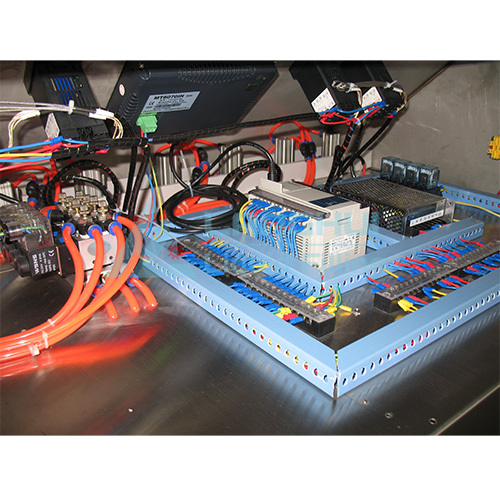

- Delta DVP-32EC PLC system control, Delta DOP-107BV touch screen visualization operation interface.
- CHINT electrical equipment, Omron Power supply.
- AirTAC Cylinders, and WSNS Pneumatic Components.
- The filling volume is 50 ml to 500 ml adjustable.

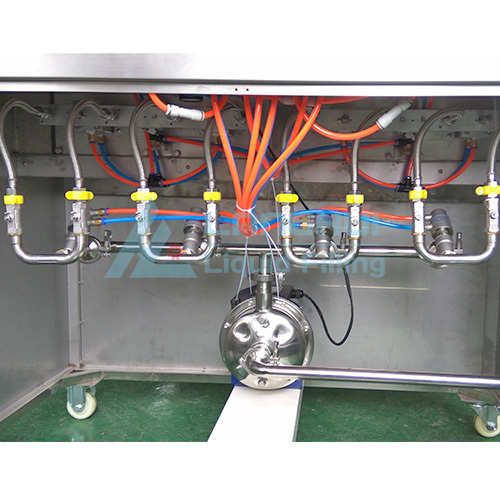

- The SUS304 food-grade centrifugal pump feeding system.
- Unique hot sealing unit, seal suitable location and firm and avoid squeezing hands.
- The filling and sealing can be controlled via mushroom push-button switches and toggle switches.
- Modular design, easy maintenance, and easier replacement of wearing parts.
- PVC Belt Conveyor are available as an option device. Automatic delivery of finished products to the next process. Aluminum profiles and SUS304 frames are available.
Technical data
Model |
BD1410 |
Packing rate |
500-3500 bags/hr |
Filling nozzles |
8 |
Workstation |
2 |
Bag material |
Composite PP; PE; PA; AL; NY; etc. pre-shaped bag |
Filling volume |
20~500ml |
Filling accuracy |
<150ml ±(2~5)ml; 150~500ml ≤±4% |
Power input |
220V 50Hz |
Power |
0.8-1.6 Kw |
Air Pressure |
0.6-0.8 Mpa |
Air Consumption |
0.25-0.30 m3/min |
Net weight |
≈130 kg |
Overall dimension |
1.2*0.7*1.1m3 |
Gross weight |
≈180 kg |
Packaging dimension | 1.3*0.9*1.3m3 |

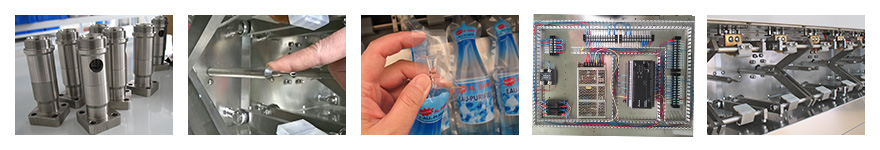

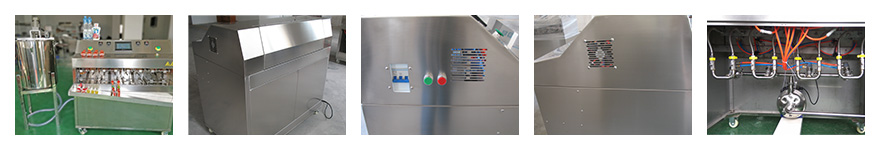

Pictures for reference
How to select which model suits your products
Please consider the following questions, which will help you choose a suitable model.
1. What is your product? It is better if there is a video showing the viscosity of the product.
2. What is the volume range (The Min. ml/g and Max. ml/g) of your bags/pouches?
3. What is the output per hour?
4. What is the power system standard in your factory? For example, this series filling machine needs AC 1 phase 220V 50Hz (standard) of the power system to drive. It also can be customized AC 1-phase-110V /240V & 50Hz /60Hz (Choose one).
5. Do you have the bag/spout pouch supplier and sample? We also can introduce our partners who are good at designing and manufacturing bags to you if you don’t have or want more references.
Tips:
3 factors affect production speed
a) the bag volume, bigger bag slower speed.
b) the viscosity of the product, higher viscosity slower speed.
c) the operator inserting bag speed (the most important factor).
Take drinking water as an example (according to skilled worker experience data):
Pouch volume | BD1410 / A / B2 / C | BD1410A2 / B3 |
100ml | 2,800-3,200 BPH | 3,100-3,700 BPH |
200ml | 2,500-2,800 BPH | 2,800-3,300 BPH |
300ml | 2,000-2,400 BPH | 2,300-2,900 BPH |
500ml | 900-1,200 BPH | 1,200-1,700 BPH |
1000ml | 700-900 BPH | 1,000-1,200 BPH |
Videos of all models are shown on the YouTube channel
The difference between the popular filling nozzle and the anti-drip filling valve & nozzle is shown on YouTube https://youtu.be/HUMzbRfsfA4

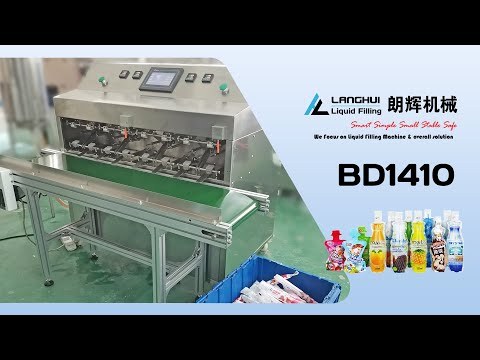

- The BD1410 video shown on YouTube is https://youtu.be/a1y4eoTaNy4
- The BD1410A video shown on YouTube is https://youtu.be/YbH5ORjG3e0
- The BD1410A2 video shown on YouTube is https://youtu.be/wgYKC-7yjJo
- The BD1410B2 video shown on YouTube is https://youtu.be/4Wbm6L06BKA
- The BD1410B3 video shown on YouTube is https://youtu.be/1OUA1-KoLUw
- The BD1410C video shown on YouTube is https://youtu.be/MHr5ylvCtVU
- PVC Belt Conveyor video shown on YouTube is https://youtu.be/gh4--0DAx4A
- A small sachet of juice completes the production line. https://youtu.be/Lw1QNd6pJqg
We have our patent for the anti-drip valve and filling nozzle.
Before determining the purchase, you can compare it with other similar machines. The anti-drip valve can suck the excess liquid back to the pipeline of the filling machine after filling bags, to avoid spraying to the outside of the bag and the machine. Then avoid polluting your machine. It also saves raw material costs and reduces cleaning work. YouTube link: https://youtu.be/Q1rvDBXu6-g
Configuration contrast
BD1410 | BD1410A | BD1410A2 | BD1410B2/C | BD1410B3 | ||
01 | Delta touch screen | Yes | Yes | Yes | Yes | Yes |
02 | Delta PLC system | Yes | Yes | Yes | Yes | Yes |
03 | CHINT electrical equipment | Yes | Yes | Yes | Yes | Yes |
04 | Omron Power supply | Yes | Yes | Yes | Yes | Yes |
05 | AirTAC air cylinder | Yes | Yes | Yes | Yes | Yes |
06 | Food-grade silicone hose | Yes | Yes | Yes | Yes | Yes |
07 | SUS304 Centrifugal pump | Yes | Yes | Yes | No | No |
08 | SUS304 piston pump | No | No | No | Yes | Yes |
09 | Pop filling nozzles | Yes | No | No | No | No |
10 | Anti-drip valve & filling nozzles | No | Yes | Yes | Yes | Yes |
11 | Low viscosity liquid | Yes | Yes | Yes | Yes | Yes |
12 | High viscosity liquid | No | No | No | Yes | Yes |
13 | Upgraded control system | No | No | Yes | No | Yes |

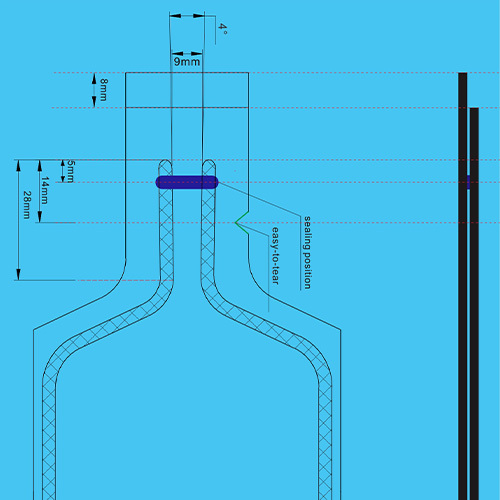

Critical size of the bag
We also can design filling nozzles for you according to your bag.
About the warranty and shelf life
12-month warranty, lifetime service.
We provide 1 printed manual and 1 USB disk, which contain detailed instruction videos on how to install, operate, maintain, and repair.
We provide 24-hour online after-sales service via WhatsApp, and WeChat, Messenger, email.
Through these methods, Since the company was founded in October 2013, there has been no customer need to provide on-site services. Greatly reduces maintenance costs for customers.
Operation Video of BD1410
We supply a printed manual, a USB disk which was saves operation videos (showing how to operate, repair, and maintain, etc.), and online service. You also can download it online.
01. How to Install the receiver groove
02. How to quick start BD1410
03. How to set parameters and adjust;
04. How to replace seal pad;
05. How to replace heating pipe;
06. How to replace thermocouple;
07. How to replace temperature controller;
08. How to adjust bag clamper pressure;
09. How to test secondary pressure;
10. How to replace filling nozzle BD1410
